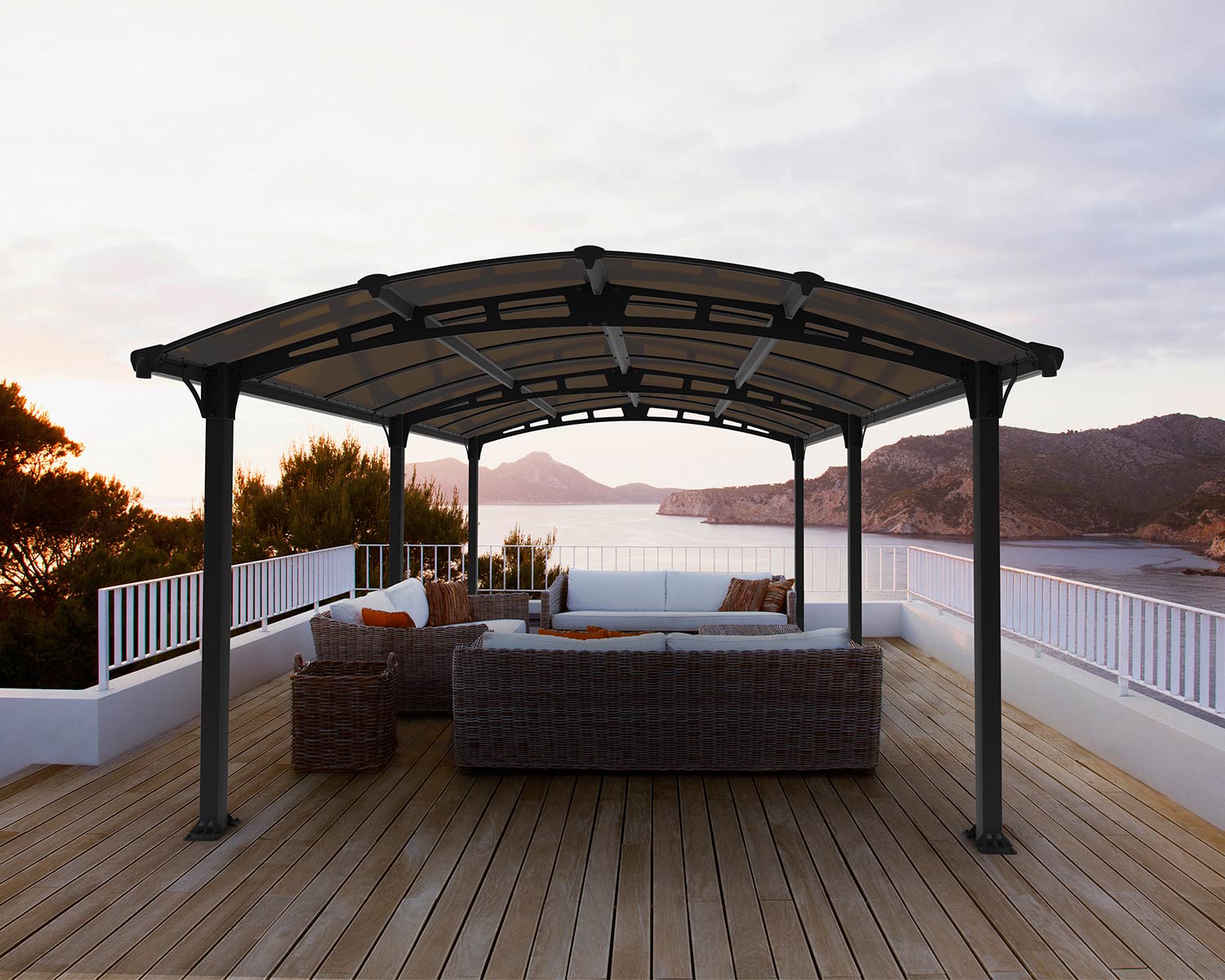

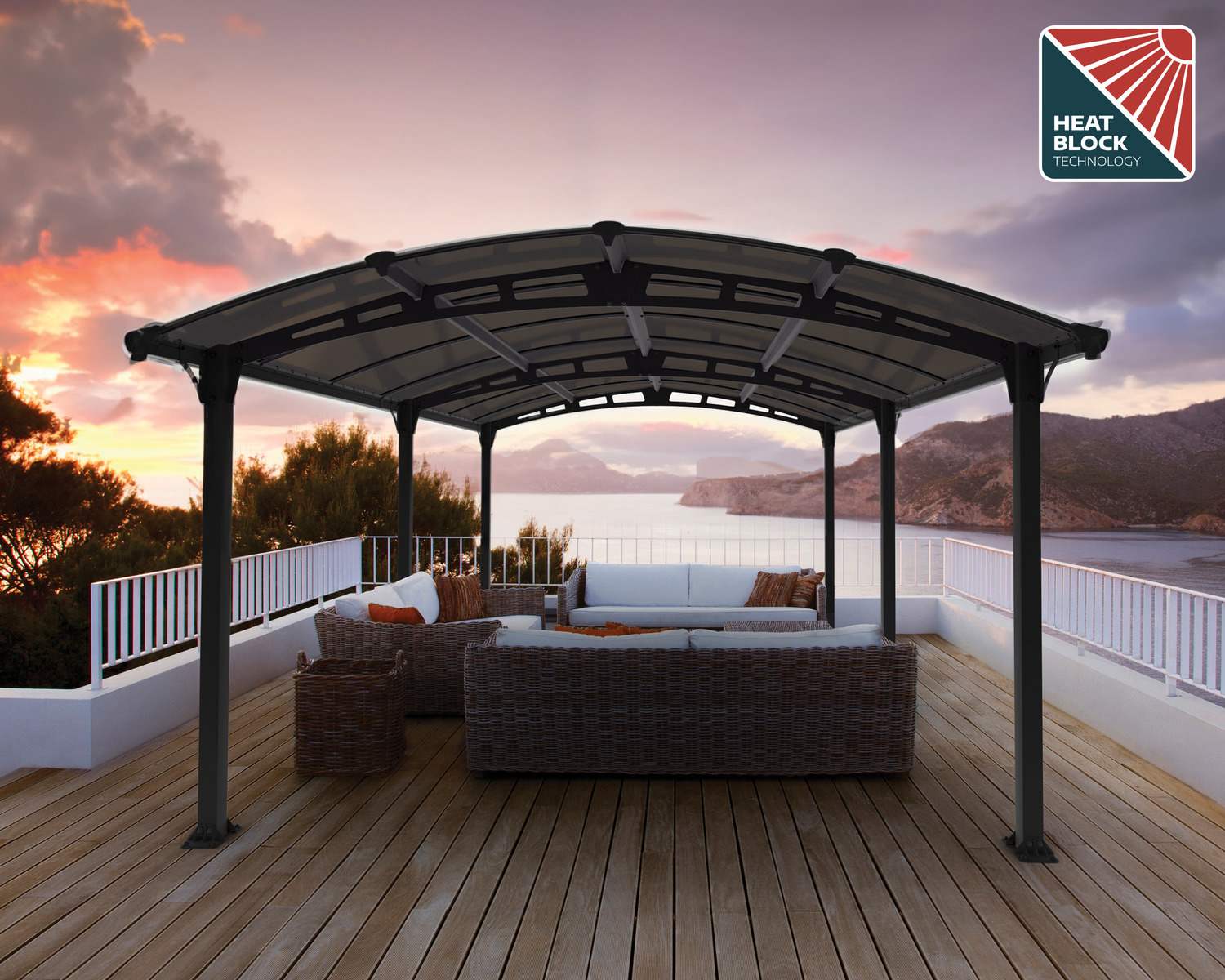

Tucson 3.59m x 5.07m Permanent Gazebo Kit

Size
Structure color

Turn your outdoor area into a quaint outdoor living space, an addition to your home and lifestyle to be enjoyed year-round. The Tucson Garden Gazebo; A high performance, stylish and durable DIY multi-purpose structure, has been designed to meet your needs!
Crafted with maintenance-free materials, the Tucson is a smart choice for your garden and backyard, offering protection during harsh, volatile weather conditions. It offers stylish comfort for your outdoor space, excellent for your BBQ grill, outdoor leisure spa, as an outdoor kitchen, temporary gathering shelter or play area for children. It presents you and your family with an elegant and sturdy structure to be utilized all year-round.

  • Unique screw-free roofing system
  • Robust, rust-resistant, granulated anthracite powder-coated frame made of heavy-duty aluminum and laser cut galvanized steel connectors
  • Virtually unbreakable, high impact 100% UV protected 6 mm twin-wall polycarbonate panels -protect from harmful UV rays, hail, and snow
  • Treated bronze glazing -transmits natural sunlight on overcast cloudy days and provides sufficient shading on hot sunny days
  • Withstands harsh weather conditions -no need to remove panels during the winter season
  • Simple 2 person DIY structure -sliding panels’ assembly system, ready to assemble pre-drilled profiles, pre-cut panels, and all screws included
  • The product requires a solid leveled surface for installation, such as a concrete or wooden base

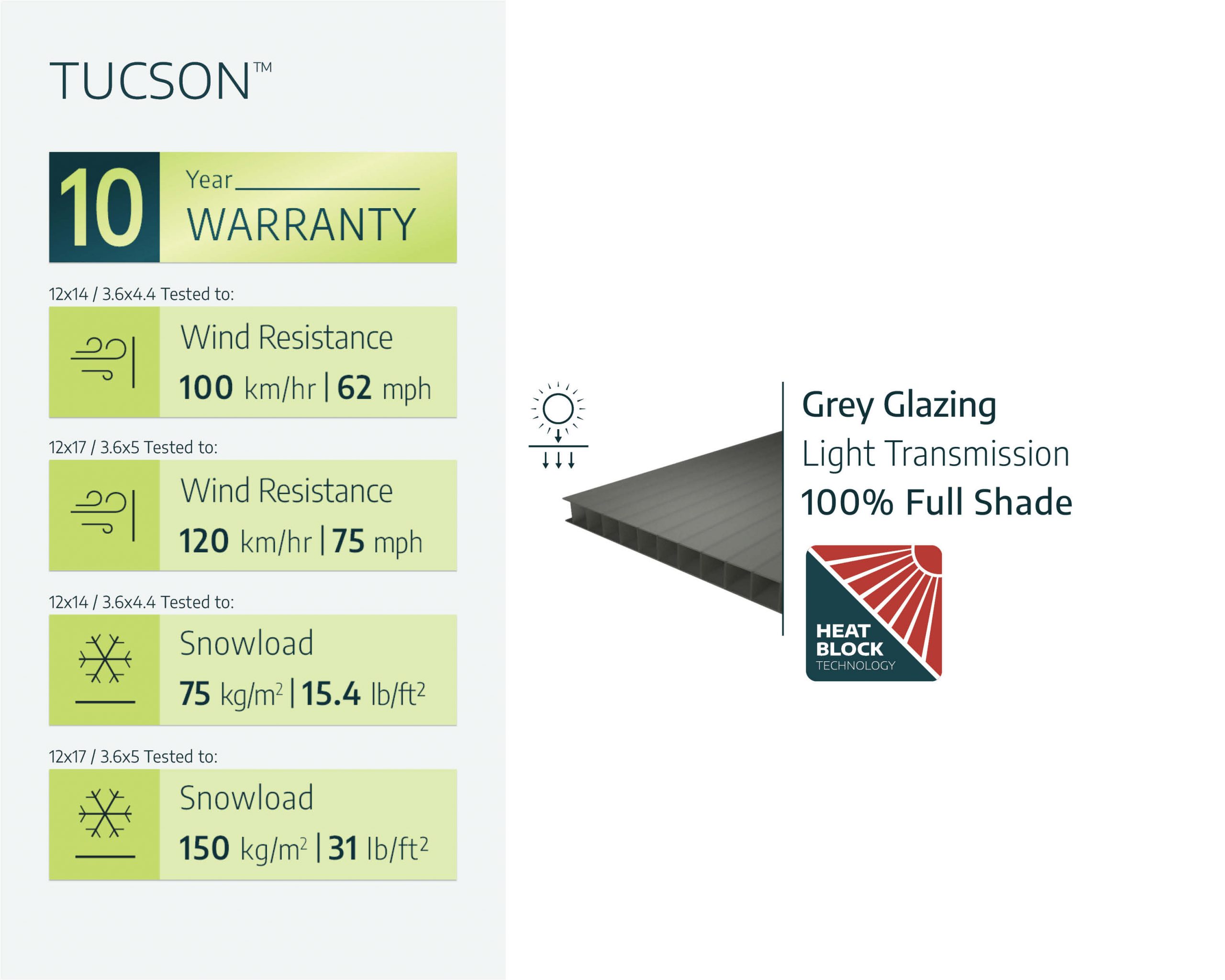

  • Technical information, including dimensions, panel thickness, and wind and snow load, can be found in the photo gallery above.
  • The Gazebos are available in various sizes. Click to find more Gazebo kits.

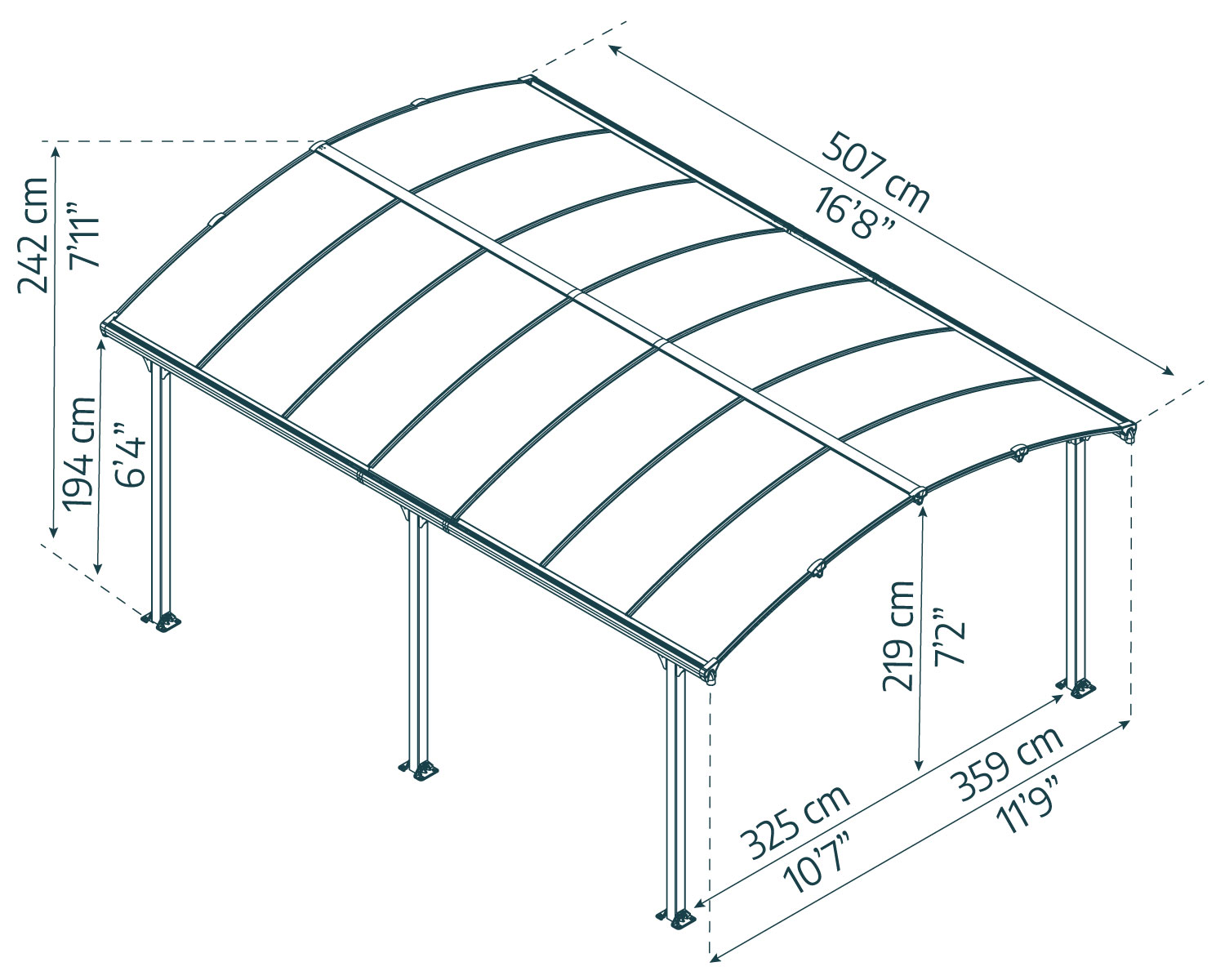

Dimensions

A Length 507cm 16'8"ft
B Width 359cm 11'9"ft
C Maximum Hight 242cm 7'11"ft

Product Details

Gazebo Accessories

Check out our certified Canopia accessories

Gutter & gutter heads

Integrated gutter and gutter heads allow you to easily channel and collect rainwater for a sustainable irrigation system

Anchoring

Secure the carport to the surface of your choosing Structure can be easily relocated 6 Sturdy and durable 8.8 cm (3.15 in. x 3.15 in.) aluminum poles

Rating and Reviews

5 (1 Review)
Rating Breakdown
0
0
0
0
1
Post a review
Customer Review (1)
  1. HomeDepotCustomer Country: United States (US)

    Excellent fit and finish.

    Easy to install even on sloping surface. First rate carport, gazebo. (Originally posted at "Homedepot.com")

FAQ

The Martinique / Milano / Monaco / Palermo / Roma gazebo series do not have 2 different tracks, therefore cannot be installed together.
The gazebo can be set up on grass / dirt, however there should be concrete footings to attach the poles to.
There is a slight slope in order to make sure that water will runoff.
The gazebo’s structure can support a ceiling fan hanging from it. Please make sure you install the fan and the wiring in a secure way, you may consult with a handyman as to how to attach it to the top.
Yes, you can use a small propane fire pit under the Garden Gazebo. Please make sure you follow the manufacturers’ safety advice and keep a safe distance.
Yes, it is recommended to anchor it to concrete / concrete slab.
A spray may compromise the polycarbonate’s integrity, it is not recommended to paint the panels. Please refer to the warranty.
Yes, this gazebo must be anchored. It comes with an anchoring and foot pads kit.
Yes, the polycarbonate panels can definitely stay on during winter season. There’s no need to remove the panels.

Assembly guide

Assembly instructions & Certificates for Downloads

Arcadia, Tucson, Certificate EN1090

Foundation

A
Prepare the site

The product must be built on a solid anleveled surface in order to perform properly.

1 - Clear the site


2 - Level the ground


Important We recommend checking for restrictions or covenants for building this product in your area. In addition we advise to check if you need to submit any forms or if any permit is required prior to building the product.
B
Choose your foundation type
Option 1: Concrete / Wooden Deck

The screws and masonry anchors supplied with the kit are suitable for concrete fixing only. Please consult with an expert regarding which fasteners are suitable for other surfaces types (not supplied).



Option 2: Paving stones

Dig holes into the ground and fill with concrete. For frozen areas, please check the required depth needed for these holes.





a – 10 cm / 4″ | b + c – 40 cm / 1’4″

Option 3: Solid ground / Asphalt




a + b + c – 40 cm / 1’4″

C
Dimensions (3.59x5.07)


The Illustration describes center-to-center distance between poles.



Having purchased a longer carport, go to “Foundation Dimensions” page for further information.

C
Dimensions (3.59x4.35)


The Illustration describes center-to-center distance between poles.



Having purchased a longer carport, go to “Foundation Dimensions” page for further information.
