Arcadia 3.6m x 10.6m Carport - Grey Aluminium With Twin-wall Polycarbonate Roof Panels

Structure color
Glazing
Product Series Name

For delivery to regional areas, please contact us to arrange a quote by phone or by filling out the following form
We’ve all had those mornings when the weather is awful, and you have to clear the snow off your car or get into a scorching hot vehicle. The Arcadia Carport saves you time and effort and shields you and your car from the weather. The curved roof Carport also protects your car from color fading from the sun, unnecessary scratches, and damage. With over 10 feet of entry width and 7 feet of overhead clearance, the Arcadia single carport gives you plenty of room to park and walk around your vehicle. This sturdy single carport also boasts a snow load capacity of up to 15.4 lbs./ft². Other features include a gutter to direct rainwater, high impact twin-wall polycarbonate roof panels and an aluminum rust-resistant frame. All these features mean that the structure is multipurpose and can be used as a covered outdoor lounging area as well. Extend the life of your vehicle and spend less time worrying about your car with the Arcadia Carport Kit.

  • Highly resistant polycarbonate carport kit, a multi-purpose structure designed for the superior protection of your car and other vehicles – all year round
  • Transmits natural sunlight while providing up to 100% protection from harmful UV sun rays
  • Resilient bronze-tinted 6 mm twin-wall polycarbonate glazing; does not fracture, becomes brittle, or turns yellow over time.
  • Sturdy, anti-rust aluminum carport offering ample shading
  • Specially engineered to withstand harsh weather conditions.
  • The architecture allows easy access and car parking.
  • Clean-lined, functional design
  • Metal carport kits maintenance-free, built to last thanks to outstandingly durable materials
  • Made with 100% recyclable materials
  • The product requires a solid leveled surface for installation, such as a concrete or wooden base
Model: #704395

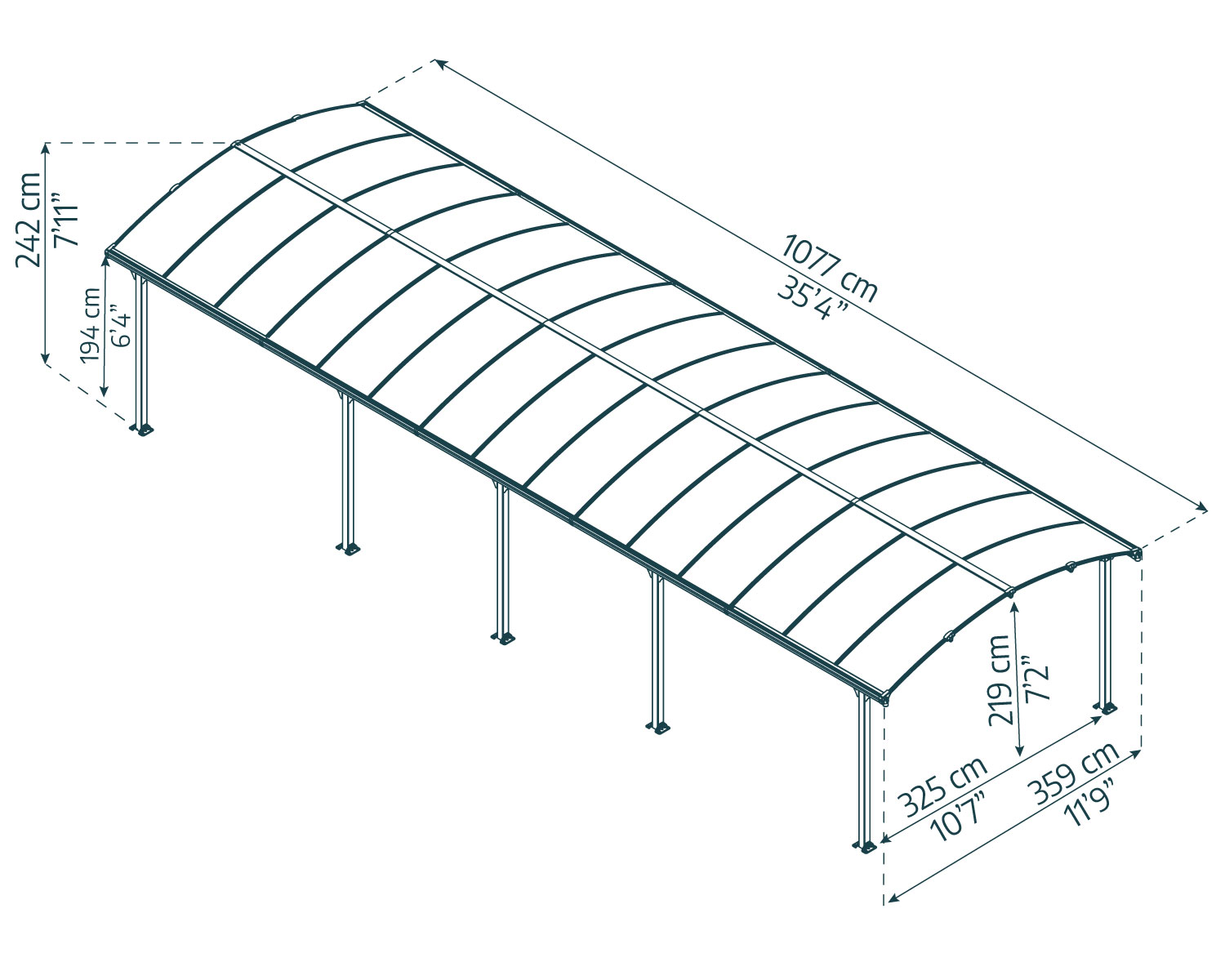

Dimensions

A Length 1077cm 35'4"ft
B Width 359cm 11'9"ft
C Height 242cm 7'11"ft

Product Details

EV Charger

For electric vehicles that will be parked under the carport, you can mount your EV charger on a carport post.

Gutter & gutter heads

Integrated gutter and gutter heads allow you to easily channel and collect rainwater for a sustainable irrigation system

Anchoring

Secure the carport to the surface of your choosing Structure can be easily relocated 6 Sturdy and durable 8.8 cm (3.15 in. x 3.15 in.) aluminum poles

Rating and Reviews

5 (8 Reviews)
Rating Breakdown
0
0
0
0
8
Reviews with images
Post a review
Customer Reviews (8)
  1. Lynn Country: United States (US)

    Looks so nice!

    I am very pleased with my purchase. I am glad that I chose this particular style. (Originally posted at "Homedepot.com")
  2. PMLee Country: United States (US)

    This carport is exactly as you see on ad.

    It took hours to put together with 2 people. Nothing too hard but some parts much easier with 2 people. Seems pretty durable and looks great! Well worth the money. Parts packed tightly n neatly into 3 boxes so each box about 100lbs. Fit easily in back of pickup. All parts and pieces intact and complete. Extremely happy with this...
  3. HomeDepotCustomer Country: United States (US)

    There were lots of parts and pieces but all were well labeled with picture instructions clearly labeled to aid in installation.

    It definitely took two people to assemble the carport which was good as we were able to assemble heavy and long pieces without damaging them or injury to ourselves. (Originally posted at "Homedepot.com")

FAQ

The polycarbonate roof panels can withstand temperatures up to 190 F.
Yes, this keeps the rain off without leaking.
Arcadiaâ„¢ / Veronaâ„¢ / Vitoriaâ„¢ / Palmaâ„¢ allow 15% light transmission. Arizonaâ„¢ / Atlasâ„¢ allow 10% light transmission.
Yes, it certainly should withstand its impact and maintain its integrity. It will not shatter if an acorn hits it, having said that, it is not recommended to be built directly under a tree.
The carport needs to be properly installed on a concrete slab, concrete footings or deck. The base of the posts has to be anchored onto a solid base / footing and fastened with the foot pads kit. Yes, it is possible to mount on a deck. Please consult with a professional with regards to the appropriate bolts and screws and masonry anchors.
The posts length is 82.7 in. (210 cm)
It is not recommended to paint the polycarbonate panels, please refer to the warranty.
The carport needs to be anchored well and should be on cement footings.
Yes, the Arcadia’s panels are heat resistant, as long as you keep the grill at a reasonable distance from the panels, it should be fine. Please make sure you follow the manufacturers safety advise and keep a safe distance. The polycarbonate panels can withstand heat of over 180 degrees F. Make sure you keep a safe distance from the heat source, as per the manufacturer’s safety advise.

Assembly guide

Assembly instructions & Certificates for Downloads

Foundation

A
Prepare the site

The product must be built on a solid anleveled surface in order to perform properly.

1 - Clear the site


2 - Level the ground


Important We recommend checking for restrictions or covenants for building this product in your area. In addition we advise to check if you need to submit any forms or if any permit is required prior to building the product.
B
Choose your foundation type
Option 1: Concrete / Wooden Deck

The screws and masonry anchors supplied with the kit are suitable for concrete fixing only. Please consult with an expert regarding which fasteners are suitable for other surfaces types (not supplied).



Option 2: Paving stones

Dig holes into the ground and fill with concrete. For frozen areas, please check the required depth needed for these holes.





a – 10 cm / 4″ | b + c – 40 cm / 1’4″

Option 3: Solid ground / Asphalt




a + b + c – 40 cm / 1’4″

C
Dimensions (3.59x12.9)


The Illustration describes center-to-center distance between poles.



Having purchased a longer carport, go to “Foundation Dimensions” page for further information.

C
Dimensions (3.59x10.77)


The Illustration describes center-to-center distance between poles.



Having purchased a longer carport, go to “Foundation Dimensions” page for further information.

C
Dimensions (3.59x8.63)


The Illustration describes center-to-center distance between poles.



Having purchased a longer carport, go to “Foundation Dimensions” page for further information.

C
Dimensions (3.59x6.49)


The Illustration describes center-to-center distance between poles.



Having purchased a longer carport, go to “Foundation Dimensions” page for further information.

C
Dimensions (3.59x5.07)


The Illustration describes center-to-center distance between poles.



Having purchased a longer carport, go to “Foundation Dimensions” page for further information.

C
Dimensions (3.59x4.35)


The Illustration describes center-to-center distance between poles.



Having purchased a longer carport, go to “Foundation Dimensions” page for further information.
