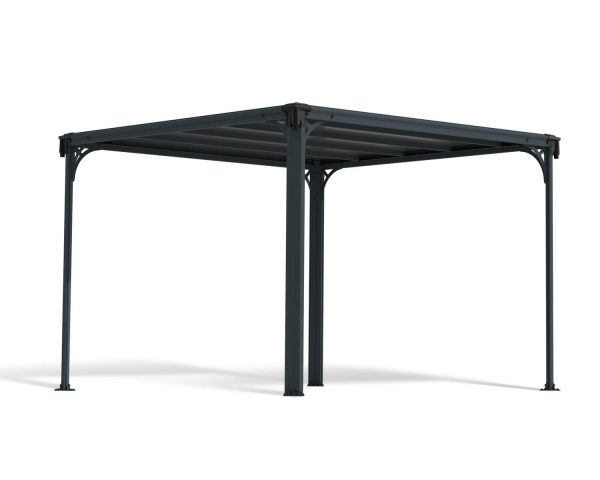

Milano 3.09m x 3.09m Permanent Gazebo Kit

Preview in 3D

Preview in AR

Scan QR code for AR preview on your device
Requires compatible Apple iOS 13 or Android with ARCore 1.9+
Structure color

For delivery to regional areas, please contact us to arrange a quote by phone or by filling out the following form

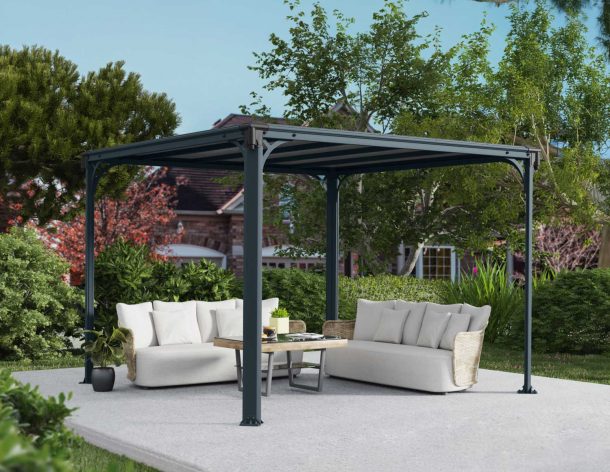

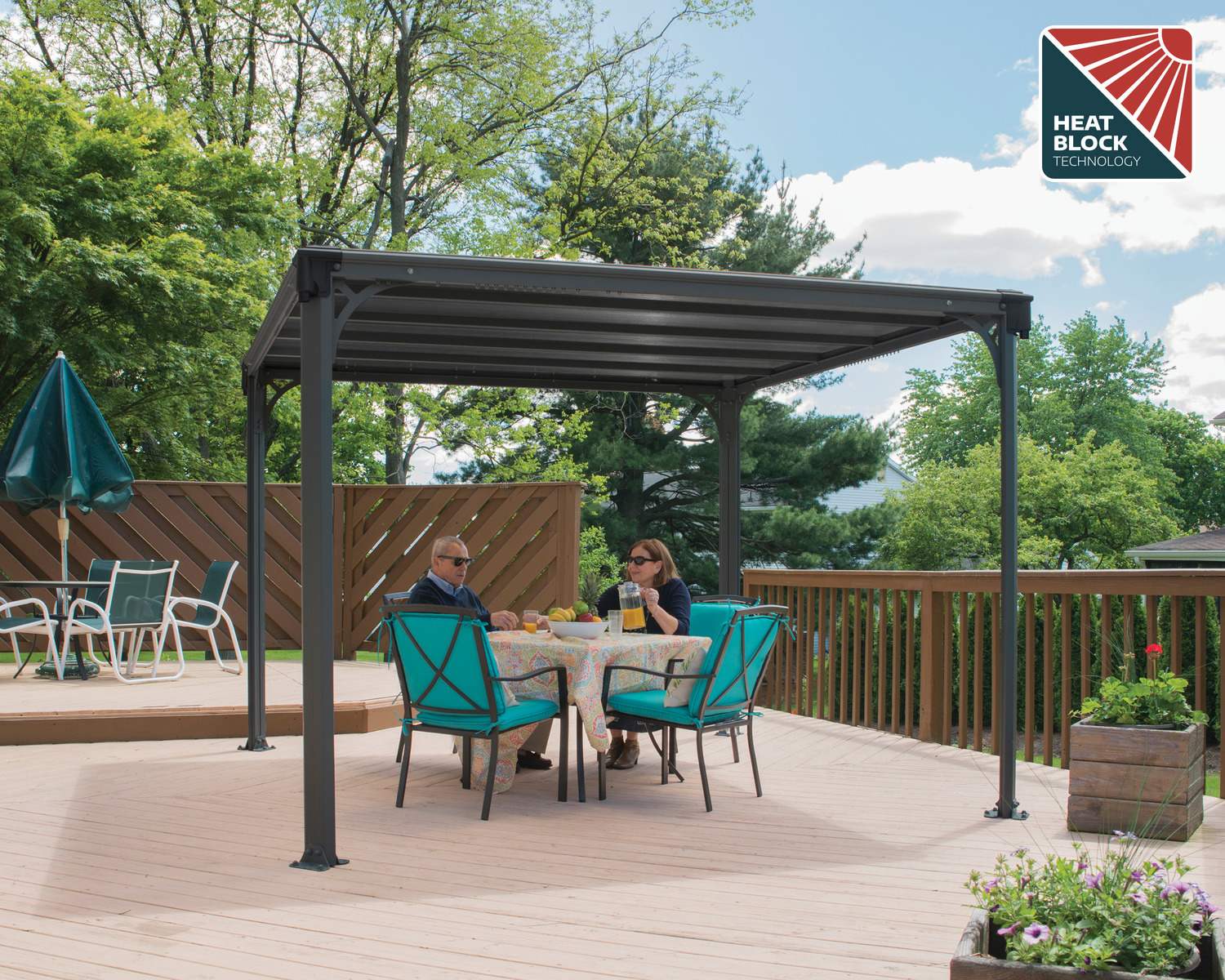

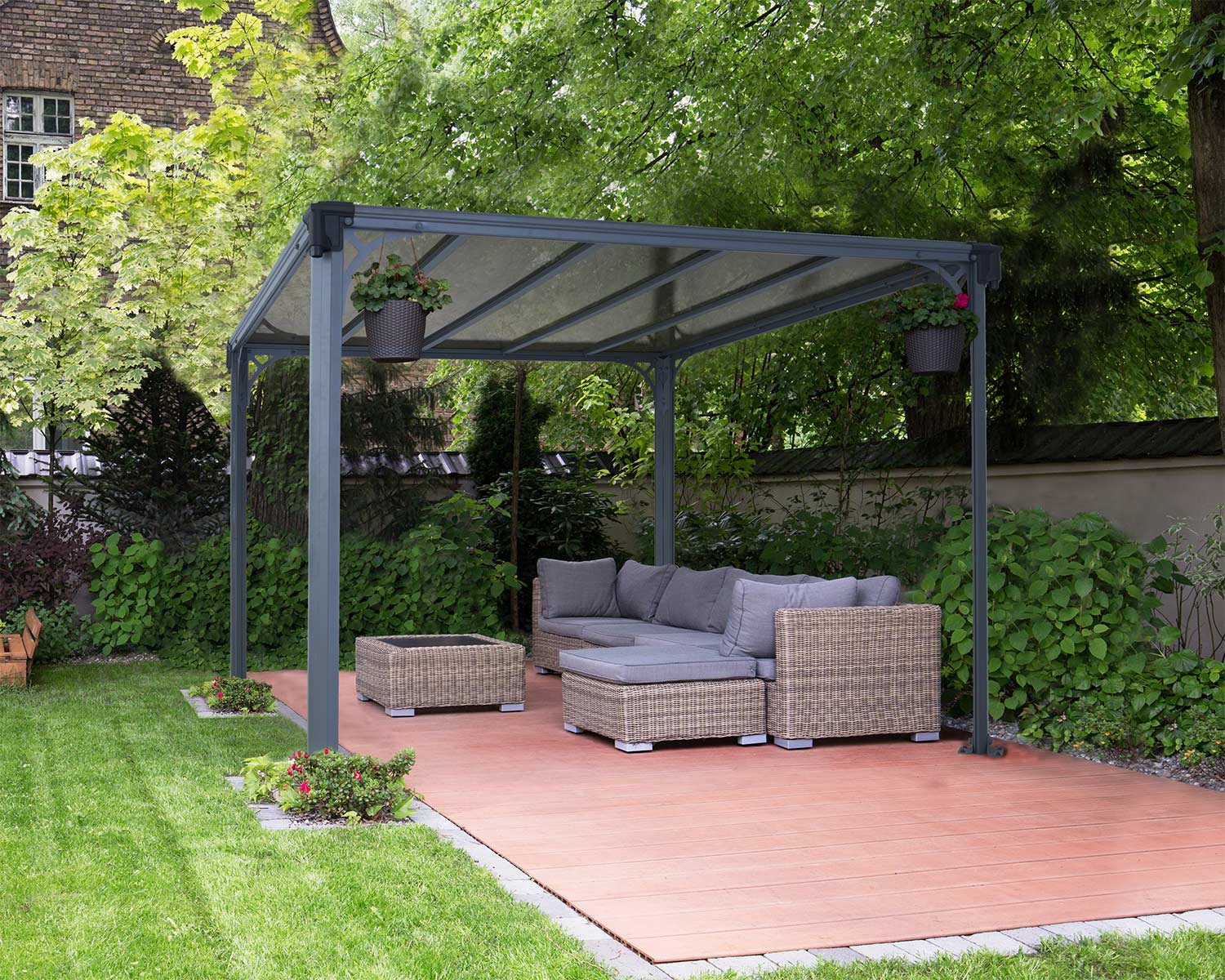

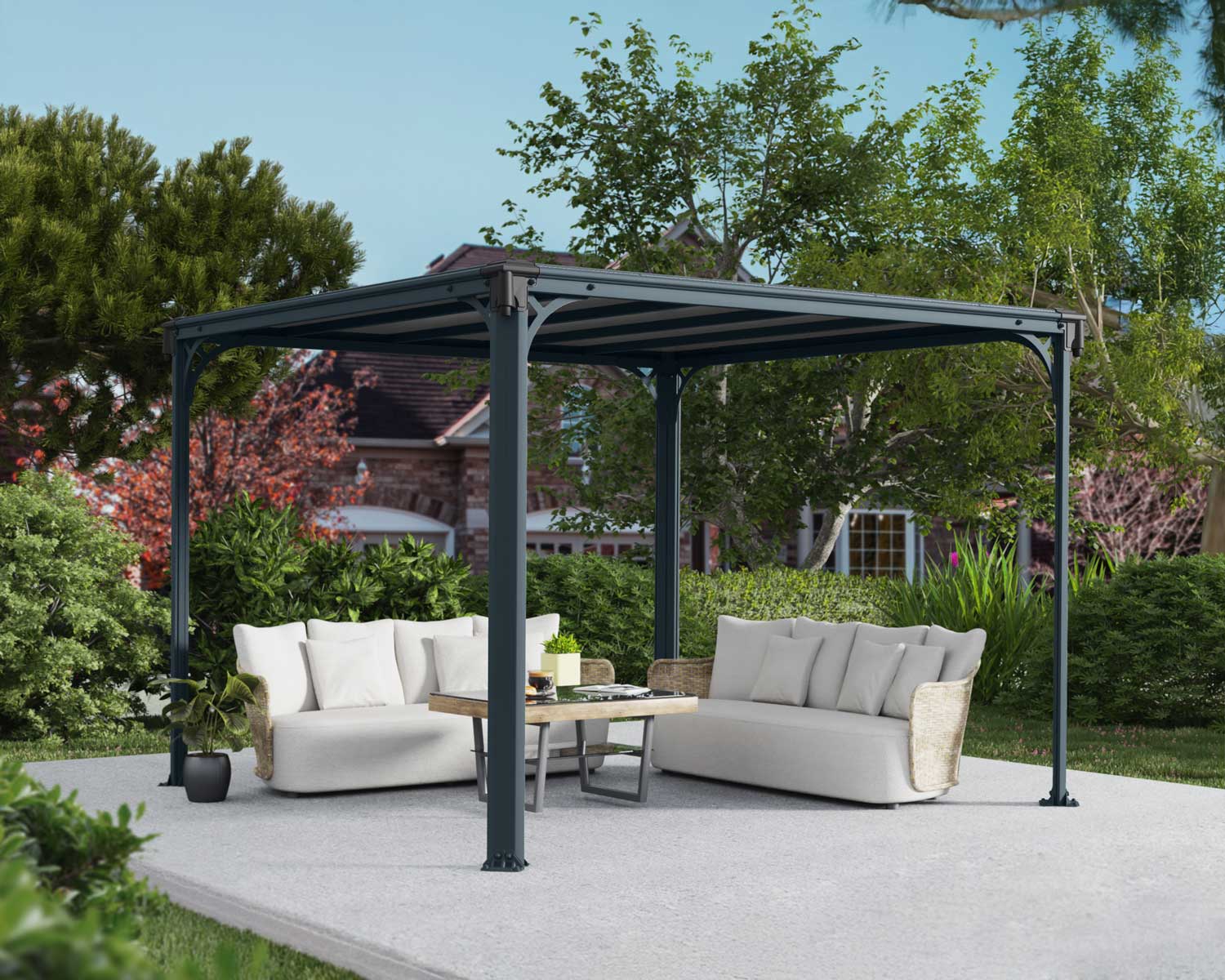

Looking for a gazebo to fit your modern aesthetic? The Milano flat top open gazebo gives you that lounging area, garden décor, and a place to rest and have guests and parties with that clean look you love. The roof panels provide you with the shade you need, while letting in the light you crave. Add curtains to change the look and provide you with some privacy and netting to keep your area bug-free. Decorate it however you want, with the furniture to suit your lifestyle, some textiles for interest and some string lights for ambience.

  • Unique screw-free roofing system
  • Robust, rust-resistant, granulated anthracite powder-coated frame made of heavy-duty aluminum and laser cut galvanized steel connectors
  • Virtually unbreakable, high impact 100% UV protected 6 mm twin-wall polycarbonate panels -protect from harmful UV rays, hail, and snow
  • Treated bronze glazing -transmits natural sunlight on overcast cloudy days and provides sufficient shading on hot sunny days
  • Withstands harsh weather conditions -no need to remove panels during the winter season
  • Simple 2 person DIY structure -sliding panels’ assembly system, ready to assemble pre-drilled profiles, pre-cut panels, and all screws included
  • Integrated rails and hangers for adding curtains/mosquito netting (not supplied)
  • Maintenance-free design

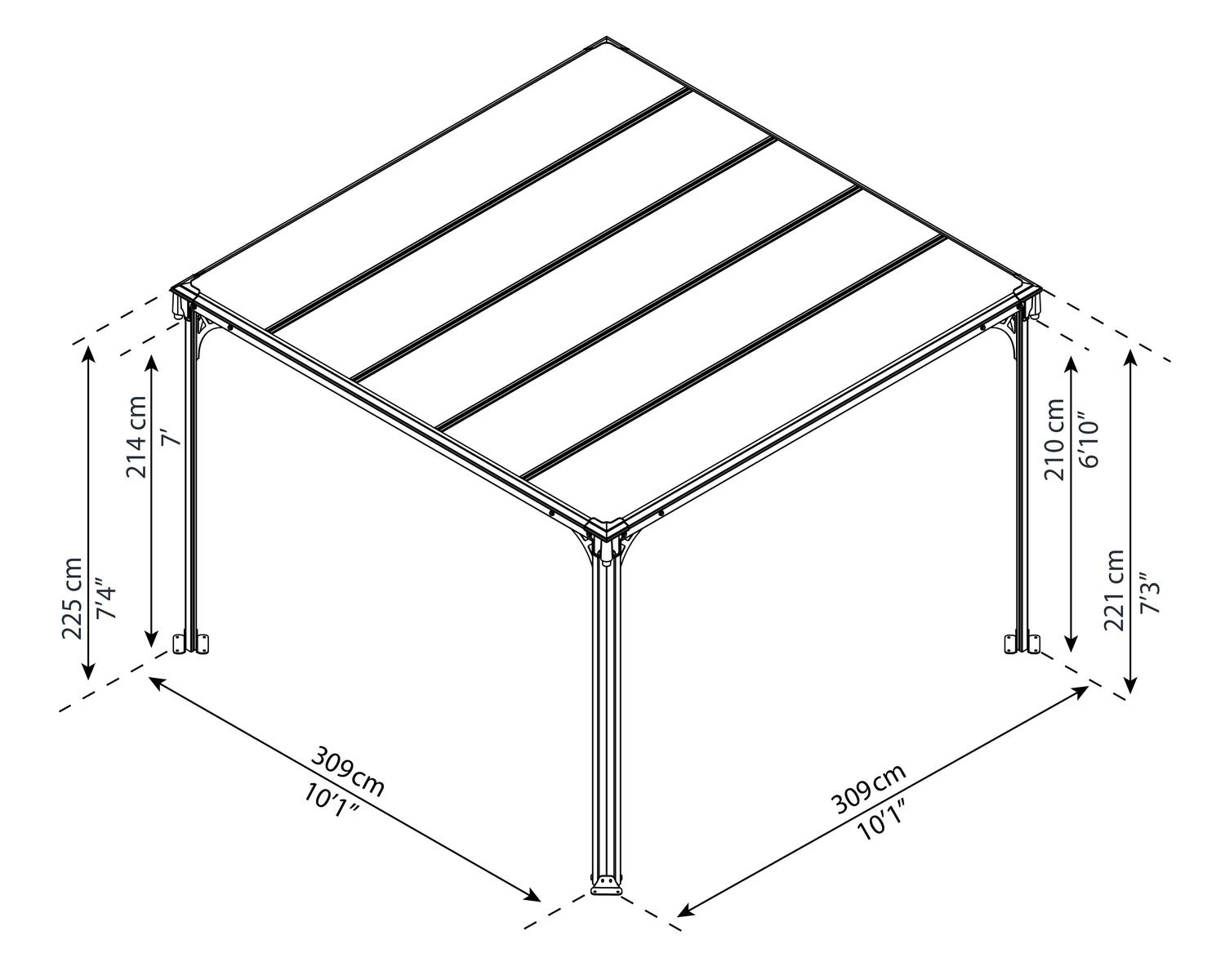

Model: #703728


A Length 309cm 10'1"ft
B Width 309cm 10'1"ft
C Height 221-225cm 7'3"-7'4"ft

Product Details

Gutter & gutter heads

Integrated gutter heads ‘ allow water collection

Aluminum Structure

Sturdy, rust-resistant anthracite powder-coated frame made of heavy duty aluminum and laser cut galvanized steel connectors Simple 2 person DIY assembly , ready to assemble pre-drilled profiles; all screws included

Rating and Reviews

4.91 (3 Reviews)
Rating Breakdown
Reviews with images
Post a review
Customer Reviews (3)
  1. SandraR Country: United States (US)

    Hired a couple guys to set up.

    Not even 3 days later had severe winds and rain. Stayed nice and dry but also added cabana curtains to shield from sideways rain as we live on a ridge in western wa state. Came through like a it. (Originally posted at "")
  2. Bumlbee Country: United States (US)

    We just got it up, had to do a few alterations to our deck.

    So far I think it is going to be great. The back of our house at the sliding glass door was so hot we couldn't use our deck, but this gives us some shade. Well made and fairly easy to assemble. All parts and pieces were with it, and all were well labeled for what to use when and where....
  3. SHERRY Country: United States (US)

    Well built.

    Lots of parts but it was pretty simple to put together. Getting it here was challenging but very happy with how it turned out. (Originally posted at "")


The Martinique / Milano / Monaco / Palermo / Roma gazebo series do not have 2 different tracks, therefore cannot be installed together.
The gazebo can be set up on grass / dirt, however there should be concrete footings to attach the poles to.
There is a slight slope in order to make sure that water will runoff.
Yes, the Gazebo is UV resistant, and has gutters and gutter outlets to channel and allow rainwater collection.
The gazebo’s structure can support a ceiling fan hanging from it. Please make sure you install the fan and the wiring in a secure way, you may consult with a handyman as to how to attach it to the top.
Yes, you can use a small propane fire pit under the Garden Gazebo. Please make sure you follow the manufacturers’ safety advice and keep a safe distance.
Yes, it is recommended to anchor it to concrete / concrete slab.
A spray may compromise the polycarbonate’s integrity, it is not recommended to paint the panels. Please refer to the warranty.
Yes, this gazebo must be anchored. It comes with an anchoring and foot pads kit.
Yes, the polycarbonate panels can definitely stay on during winter season. There’s no need to remove the panels.


Prepare the site

The product must be built on a solid anleveled surface in order to perform properly.

1 - Clear the site
2 - Level the ground
Important We recommend checking for restrictions or covenants for building this product in your area. In addition we advise to check if you need to submit any forms or if any permit is required prior to building the product.
Choose your foundation type
Option 1: Concrete / Wooden Deck

The screws and masonry anchors supplied with the kit are suitable for concrete fixing only. Please consult with an expert regarding which fasteners are suitable for other surfaces types (not supplied).

Option 2: Paving stones

Dig holes into the ground and fill with concrete. For frozen areas, please check the required depth needed for these holes.


a – 10 cm / 4″ | b + c – 40 cm / 1’4″

Option 3: Solid ground / Asphalt

a + b + c – 40 cm / 1’4″


The Illustration describes center-to-center distance between poles.


Having purchased a longer carport, go to “Foundation Dimensions” page for further information.


The Illustration describes center-to-center distance between poles.


Having purchased a longer carport, go to “Foundation Dimensions” page for further information.
